ID：FKS-P005
Products Description：

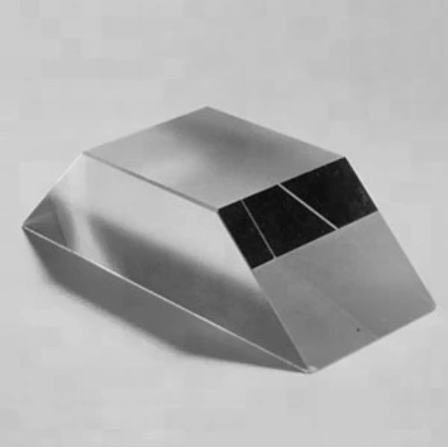

From prototype to production, Focus Technology designs, manufactures, and coats prism. Prism are one of the most basic optical components to produce. With complete in-house capabilities, Focus is able to offer Dove Prism at the lowest pricing with fast delivery times.
Technical Parameters：
|
Material: |
BK7 Glass or other optical glass upon request |
|
Dimension (mm): |
upon request. |
|
Dimension Tolerance (mm): |
+/-0.2 (General), +0/-0.05 (High Precision) |
|
Angle Tolerance: |
± 3 arc minutes(General), ± 3 arc secs (High Precision) |
|
Flatness (per 25mm@633nm): |
λ(General), λ/10 (High Precision) |
|
Clear Aperture: |
>80% (small size),>90%(large size) |
|
Surface Quality: |
60/40 (General), 20/10 (High Precision) |
|
Bevel (mm): |
0.1-0.5 |
|
Coating: |
Uncoated ,Dielectric HR coating or Metal coating on reflection surfaces is available. AR coating |
